R-2000-270R-31E

High-strength rack-mounted robot featuring 270 kg payload and 3095 mm reach, powered by the FANUC R-50iA controller for demanding applications.

Request Integration Quote Official Product Link

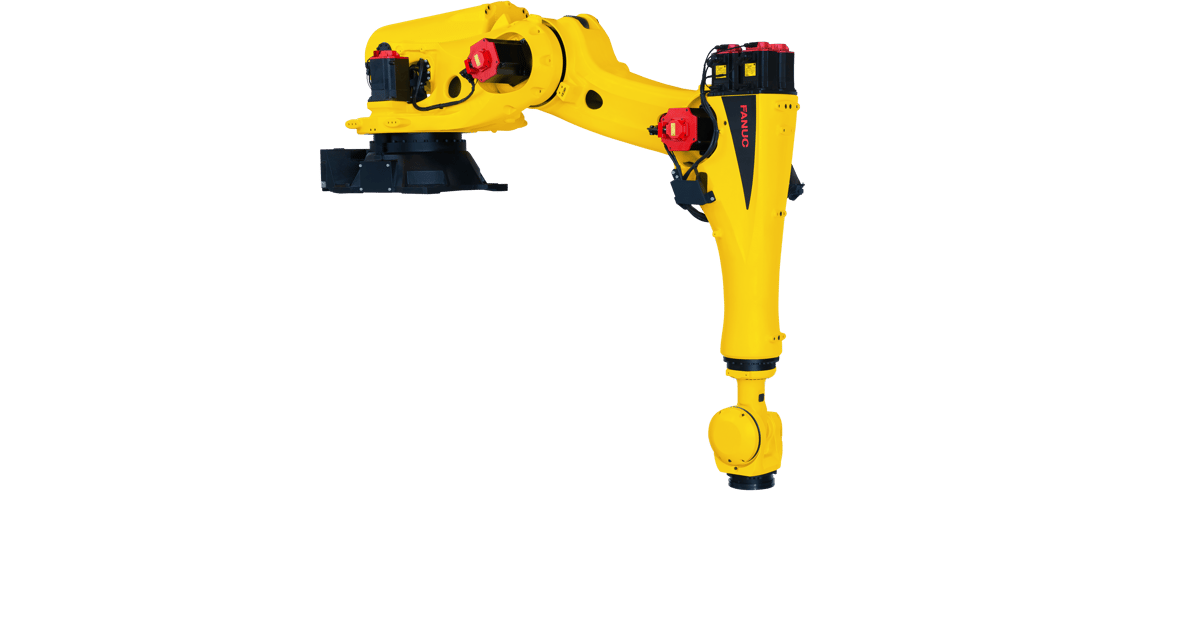

FANUC R-2000-270R-31E robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: R-2000-270R-31E
Robot Type: Articulated Robot
Payload: 270 kg
Reach: 3095 mm
Axes: 6
Repeatability: ±0.05 mm
Mounting Method: Contact us for detailed specification
Controller: R-50iA
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-50iA
Axes: 6
Max Payload: 270 kg
Mounting Method: Rack
Repeatability: ±0.05 mm
Reach: 3095 mm
Mechanical Weight: 1570 kg
Average Power Consumption: 3 kW
J1 Motion Range: 370°
J2 Motion Range: 200°
J3 Motion Range: 395°
J4 Motion Range: 720°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 110°/s
J2 Speed: 90°/s
J3 Speed: 90°/s
J4 Speed: 130°/s
J5 Speed: 130°/s
J6 Speed: 210°/s
J4 Moment / Inertia: 1770/320
J5 Moment / Inertia: 1770/320
J6 Moment / Inertia: 1020/230
Body Standard / Optional: STANDARD
Wrist & J3 Arm: STANDARD

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
