R-2000iC/100P

As pedestal mount robot, the FANUC R-2000iC/100P guarantees top productivity for press to press transfer applications in Automotive and Automotive…

Request Integration Quote Official Product Link

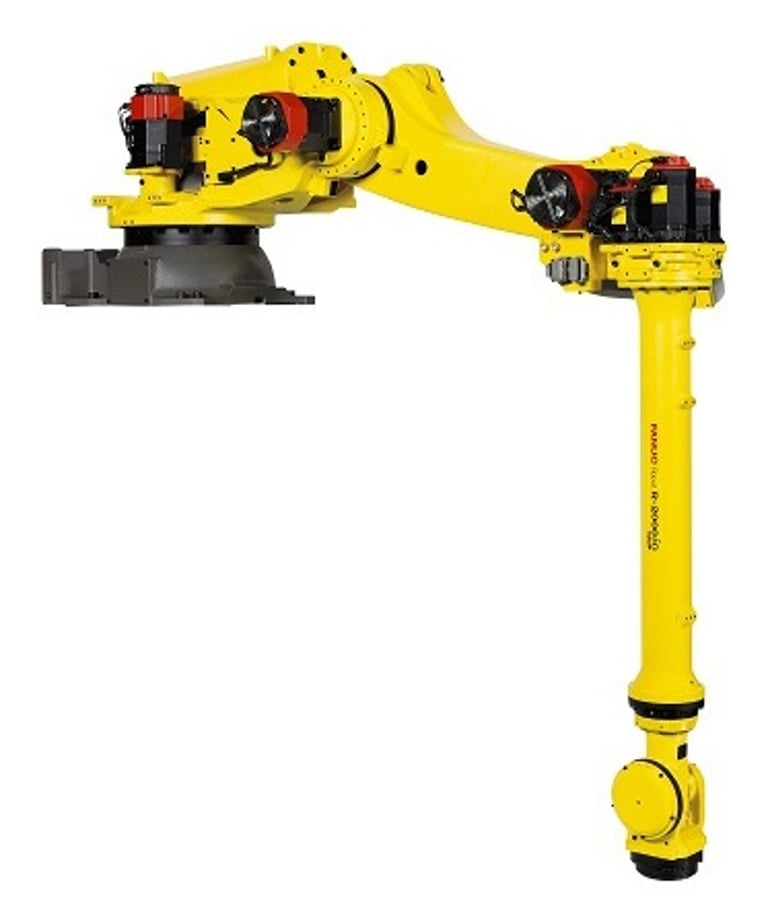

FANUC R-2000iC/100P robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: R-2000iC/100P
Robot Type: Articulated Robot
Payload: 100 kg
Reach: 3540 mm
Axes: 6
Repeatability: ±0.05 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 100 kg
Mounting Method: Rack
Repeatability: ±0.05 mm
Reach: 3540 mm
Mechanical Weight: 1470 kg
Average Power Consumption: 3 kW
J1 Motion Range: 370°
J2 Motion Range: 200°
J3 Motion Range: 375°
J4 Motion Range: 720°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 120°/s
J2 Speed: 100°/s
J3 Speed: 115°/s
J4 Speed: 140°/s
J5 Speed: 140°/s
J6 Speed: 210°/s
J4 Moment / Inertia: 1000/227
J5 Moment / Inertia: 1000/227
J6 Moment / Inertia: 706/196
Body Standard / Optional: IP54 / IP56
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
