R-2000iC/165F

The FANUC R-2000iC/165F is a 6 axis material handling robot capable of delivering excellent cycle times, it makes a nimble spot welding robot on…

Request Integration Quote Official Product Link

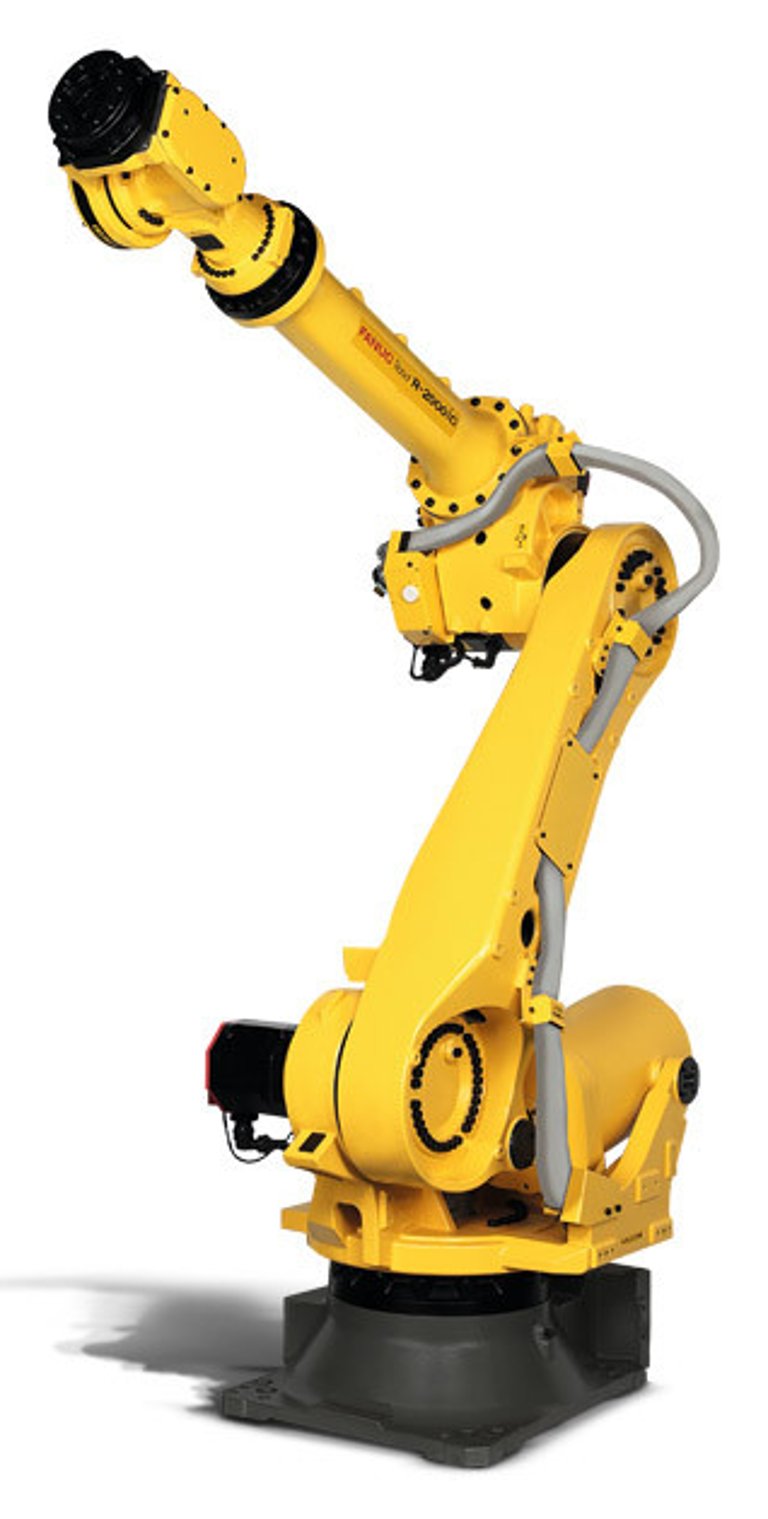

FANUC R-2000iC/165F robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: R-2000iC/165F
Robot Type: Articulated Robot
Payload: 165 kg
Reach: 2655 mm
Axes: 6
Repeatability: ±0.05 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 165 kg
Mounting Method: Floor
Repeatability: ±0.05 mm
Reach: 2655 mm
Mechanical Weight: 1090 kg
Average Power Consumption: 3 kW
J1 Motion Range: 370°
J2 Motion Range: 136°
J3 Motion Range: 312°
J4 Motion Range: 720°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 120°/s
J2 Speed: 105°/s
J3 Speed: 110°/s
J4 Speed: 140°/s
J5 Speed: 140°/s
J6 Speed: 220°/s
J4 Moment / Inertia: 940/120
J5 Moment / Inertia: 940/120
J6 Moment / Inertia: 490/100
Body Standard / Optional: IP54 / IP56
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
