R-2000iC/165R

The FANUC R‑2000iC/165R is a rack‑mounted robot designed to boost productivity in shelf installations, ideal for CNC machining and machine‑tending…

Request Integration Quote Official Product Link

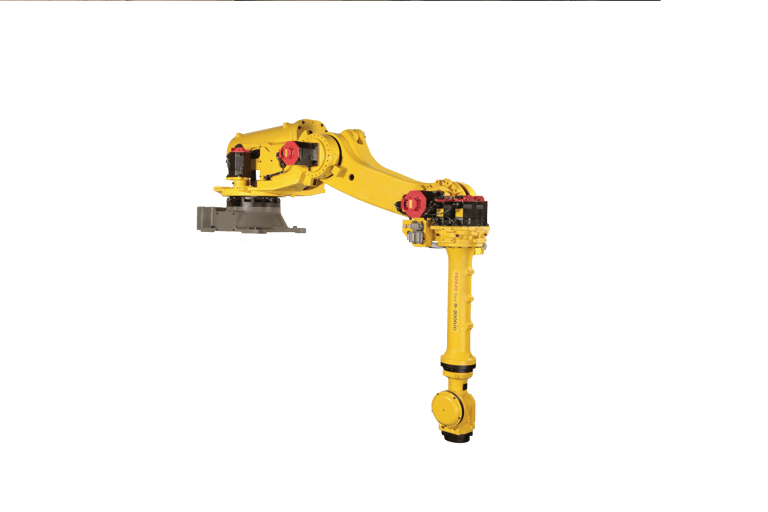

FANUC R-2000iC/165R robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: R-2000iC/165R
Robot Type: Articulated Robot
Payload: 165 kg
Reach: 3095 mm
Axes: 6
Repeatability: ±0.05 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 165 kg
Mounting Method: Rack
Repeatability: ±0.05 mm
Reach: 3095 mm
Mechanical Weight: 1370 kg
Average Power Consumption: 3 kW
J1 Motion Range: 370°
J2 Motion Range: 200°
J3 Motion Range: 375°
J4 Motion Range: 720°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 115°/s
J2 Speed: 110°/s
J3 Speed: 125°/s
J4 Speed: 180°/s
J5 Speed: 180°/s
J6 Speed: 260°/s
J4 Moment / Inertia: 940/89
J5 Moment / Inertia: 940/89
J6 Moment / Inertia: 490/46
Body Standard / Optional: IP54 / IP56
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
