R-2000iC/210WE

The FANUC R-2000iC/210WE is a washer environment robot resistant to wet, dusty, or dirty tasks while capable of lifting heavy weights up to 210kg.

Request Integration Quote Official Product Link

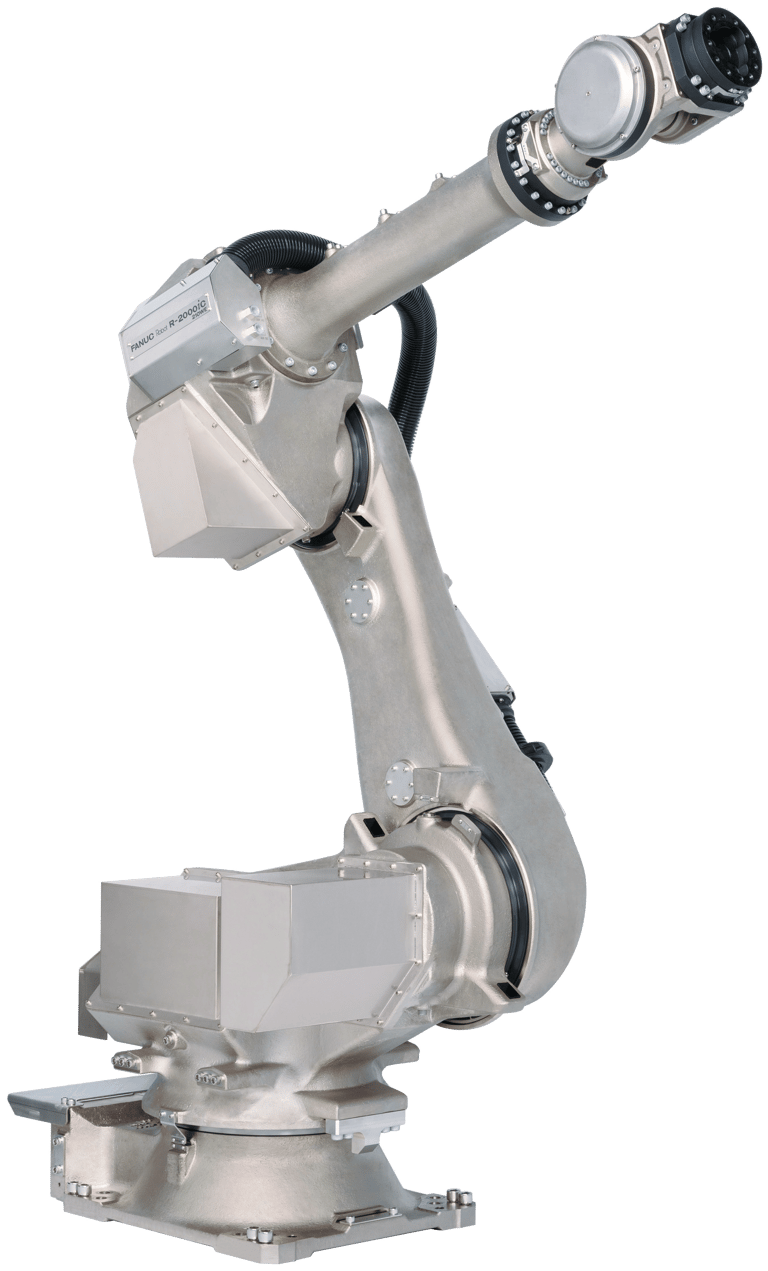

FANUC R-2000iC/210WE robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: R-2000iC/210WE
Robot Type: Articulated Robot
Payload: 210 kg
Reach: 2450 mm
Axes: 6
Repeatability: ±0.1 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 210 kg
Mounting Method: Floor
Repeatability: ±0.1 mm
Reach: 2450 mm
Mechanical Weight: 1180 kg
Average Power Consumption: 3 kW
J1 Motion Range: 330°
J2 Motion Range: 141°
J3 Motion Range: 318°
J4 Motion Range: 720°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 95°/s
J2 Speed: 85°/s
J3 Speed: 95°/s
J4 Speed: 120°/s
J5 Speed: 120°/s
J6 Speed: 190°/s
J4 Moment / Inertia: 1333/141.1
J5 Moment / Inertia: 1333/141.1
J6 Moment / Inertia: 706/78.4
Body Standard / Optional: IP67
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
