R-2000iC/270F

The FANUC R-2000iC/270F is a 6 axis heavy payload material handling robot with 270 kg payload, the strongest robot in the FANUC's R-2000 range of robots.

Request Integration Quote Official Product Link

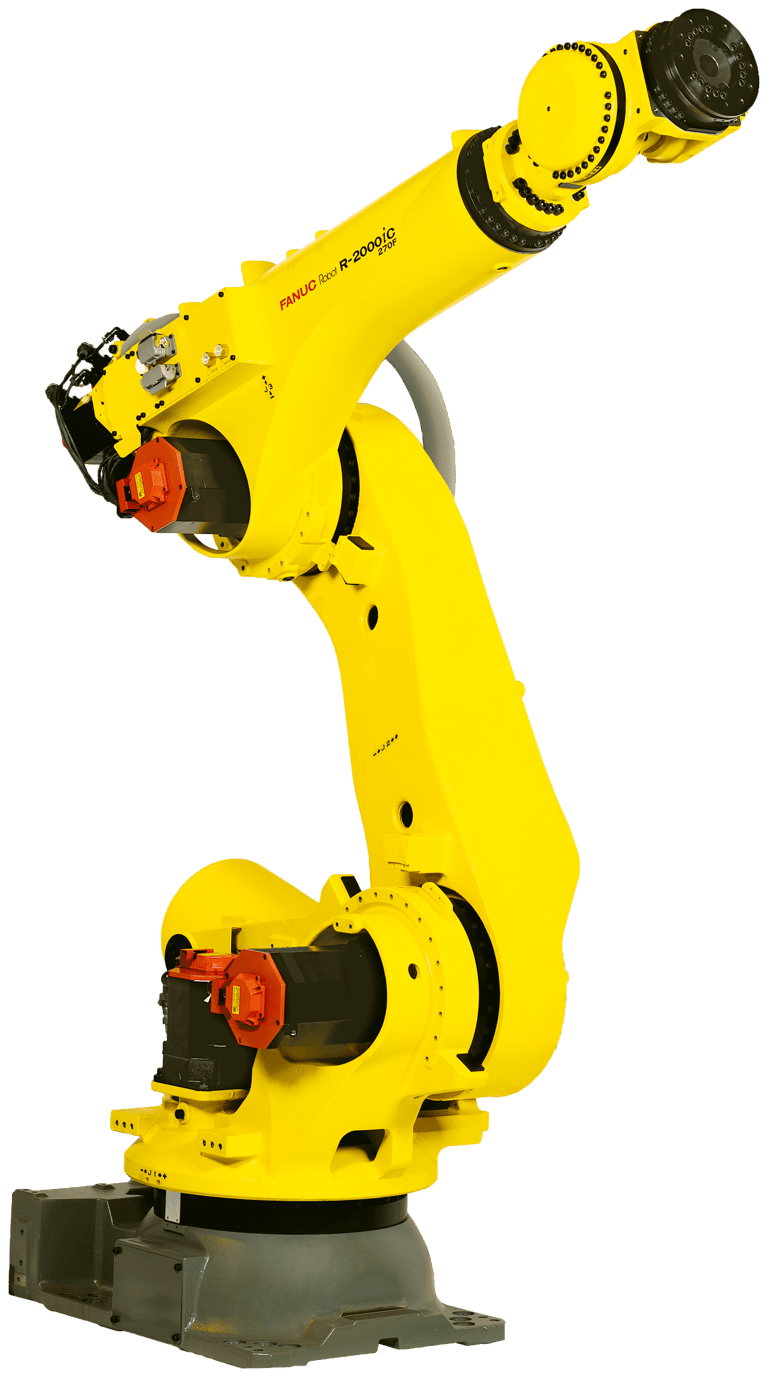

FANUC R-2000iC/270F robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: R-2000iC/270F
Robot Type: Articulated Robot
Payload: 300 kg
Reach: 2655 mm
Axes: 6
Repeatability: ±0.05 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 300 kg
Mounting Method: Floor
Repeatability: ±0.05 mm
Reach: 2655 mm
Mechanical Weight: 1320 kg
Average Power Consumption: 3 kW
J1 Motion Range: 370°
J2 Motion Range: 136°
J3 Motion Range: 312°
J4 Motion Range: 720°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 105°/s
J2 Speed: 90°/s
J3 Speed: 85°/s
J4 Speed: 120°/s
J5 Speed: 120°/s
J6 Speed: 200°/s
J4 Moment / Inertia: 1730/320
J5 Moment / Inertia: 1730/320
J6 Moment / Inertia: 900/230
Body Standard / Optional: IP54 / IP56
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
