SR-12iA

The FANUC SR-12iA SCARA Robot is a small and lightweight SCARA idea to fit into any assembly or packaging line with maximum efficiency in terms of space…

Request Integration Quote Official Product Link

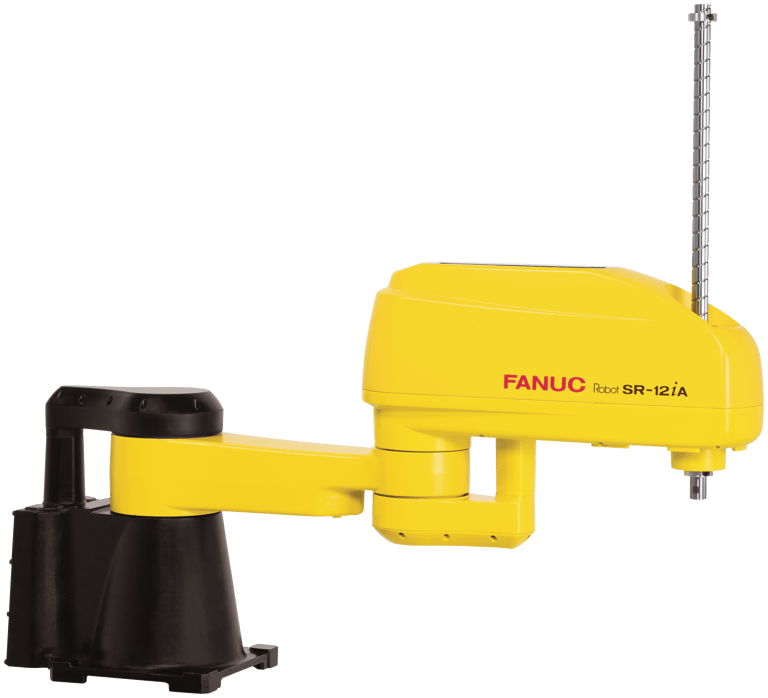

FANUC SR-12iA robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: SR-12iA
Robot Type: SCARA Robot
Payload: 12 kg
Reach: 900 mm
Axes: 4
Repeatability: ±0.01 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Assembly, Handling

Additional Specification

Controller Series: R-30iB Plus
Axes: 4
Max Payload: 12 kg
Mounting Method: Floor / Wall
Repeatability: ±0.01 mm
Reach: 900 mm
Mechanical Weight: 53 kg
J1 Motion Range: 290°
J2 Motion Range: 290°
J3 Motion Range: 300°
J4 Motion Range: 720°
J5 Motion Range: 0°
J6 Motion Range: 0°
J1 Speed: 449°/s
J2 Speed: 510°/s
J3 Speed: 0°/s
J4 Speed: 720°/s
J5 Speed: 0°/s
J6 Speed: 0°/s
J4 Moment / Inertia: -/0.3
Body Standard / Optional: IP20
Wrist & J3 Arm: IP20

BEST FOR

Recommended integration applications.

Assembly, Handling

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
