SR-20iA-ENVIRONMENTAL

The FANUC SR-20iA Environmental Option SCARA Robot is a SCARA with a white coating and waterproof IP65 rating, ideal for food-grade applications.

Request Integration Quote Official Product Link

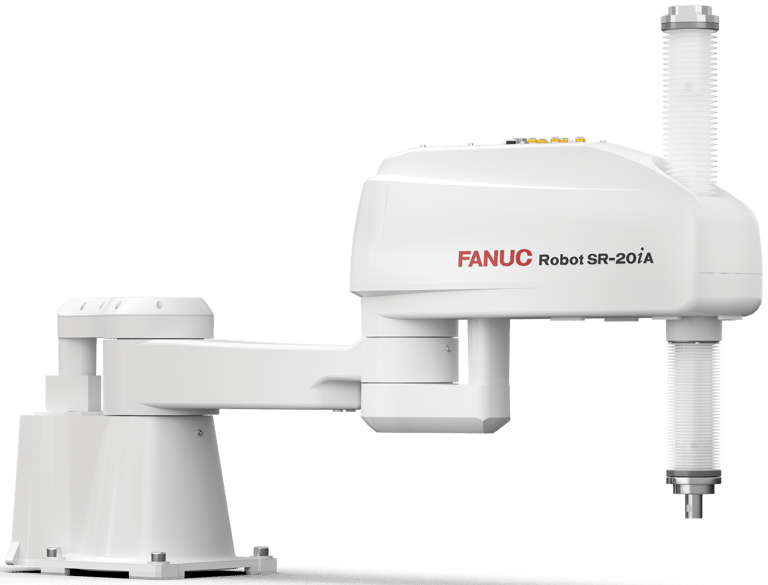

FANUC SR-20iA-ENVIRONMENTAL robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: SR-20iA-ENVIRONMENTAL
Robot Type: SCARA Robot
Payload: 20 kg
Reach: 1100 mm
Axes: 4
Repeatability: ±0.02 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Assembly, Handling

Additional Specification

Controller Series: R-30iB Plus
Axes: 4
Max Payload: 20 kg
Mounting Method: Floor / Wall
Repeatability: ±0.02 mm
Reach: 1100 mm
Mechanical Weight: 67 kg
J1 Motion Range: 145°
J2 Motion Range: 145°
J3 Motion Range: 300°
J4 Motion Range: 720°
J1 Speed: 440°/s
J2 Speed: 500°/s
J3 Speed: 2800°/s
J4 Speed: 1700°/s
J4 Moment / Inertia: --/0.45
Body Standard / Optional: IP65
Wrist & J3 Arm: IP65

BEST FOR

Recommended integration applications.

Assembly, Handling

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
