SR-3iA-U

With its 3 kg payload the FANUC SR-3iA/U upside down SCARA Robot is ideally suited to smaller-scale assembly, pick and place, inspection and packaging…

Request Integration Quote Official Product Link

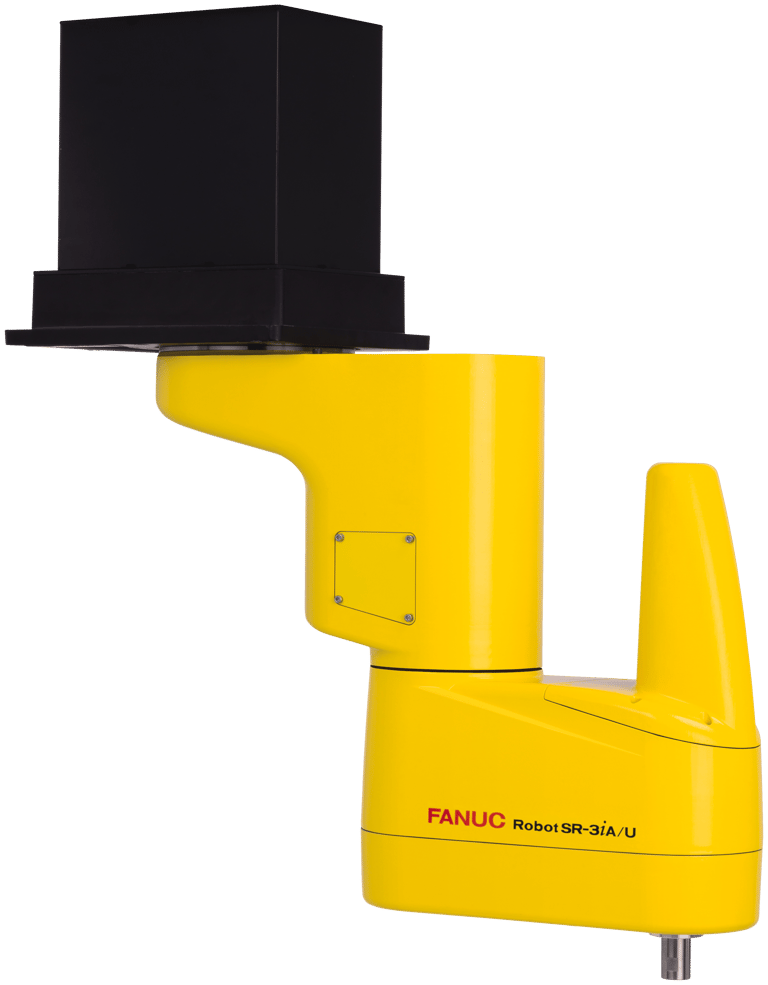

FANUC SR-3iA-U robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: SR-3iA-U
Robot Type: SCARA Robot
Payload: 3 kg
Reach: 350 mm
Axes: 4
Repeatability: Contact us for detailed specification
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Assembly, Handling

Additional Specification

Controller Series: R-30iB Plus
Axes: 4
Max Payload: 3 kg
Mounting Method: Inverted
Reach: 350 mm
Mechanical Weight: 27 kg
J1 Motion Range: 225°
J2 Motion Range: 225°
J3 Motion Range: 140°
J4 Motion Range: 720°
J5 Motion Range: 0°
J6 Motion Range: 0°
J1 Speed: 610°/s
J2 Speed: 840°/s
J3 Speed: 1500°/s
J4 Speed: 3000°/s
J5 Speed: 0°/s
J6 Speed: 0°/s
J4 Moment / Inertia: -/0.06
Body Standard / Optional: IP20
Wrist & J3 Arm: IP20

BEST FOR

Recommended integration applications.

Assembly, Handling

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
